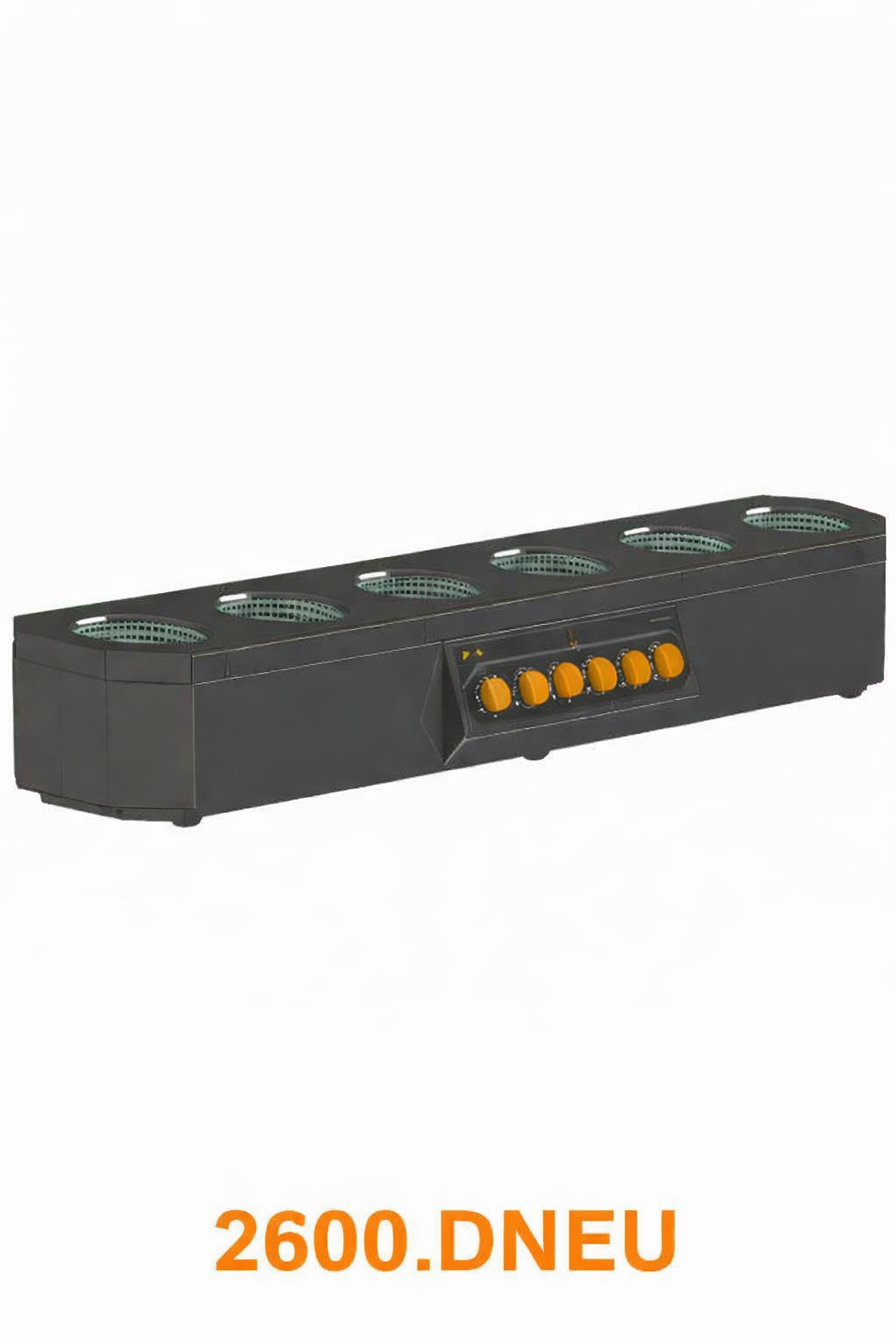

HEATING MANTLE COMBINED UNIT WITH STIRRER 3 POSITION & 6 POSITION
- Heating Mantle Combined unit made of M. steel
- Variable knob for heat power control with on/off
- Mantle knitted with glass fibre yarn
- Provides uniform heating to flasks
- For Round Bottomed Flasks as per DIN – 12347
- Easy maintenance
- Single position also available with Metallic Stand 1100.DNEU
Included Accessory:
| Cat. No. | Accessories |
|---|---|
| 2000.200.01 | Vertical Rod stainless steel length 542mm, ∅ 9.8mm |
| 2000.200.02 | Horizontal Rod stainless steel length 972mm, ∅ 9.8mm |
| 2000.200.03 | 8/5 Boss Head |
| 2000.200.04 | 6/3 clamp |
Single Soxhlet Extraction Unit
Extraction unit metal stand with heating mantle
| Model No. (230V, 50Hz) | Model No. (115V, 60Hz) | Capacity (ml) | Watts | No. of position of regulator |
|---|---|---|---|---|
| 1100.DNEU.02 | 1100.DNUS.02 | 150 | 150 | 1/1 |
| 1100.DNEU.03 | 1100.DNUS.03 | 150 | 150 | 1/1 |
| 1100.DNEU.04 | 1100.DNUS.04 | 200 | 200 | 1/1 |
Technical Specification:
| Heating Mantle Body | : Made of Mild Steel |
| Heating mantle material | : Glass fibre yarn |
| Mantle Capacity | : To hold Standard round bottom flasks upto 500ml |
| Valuable stirring speed | : 750 RPM |
| Temperature Range | : Approx. 400°C |
| Heating Control | : Electronic power regulator |
| Stir Control | : Electric regulator |
| Dimension | : 495x246x200 |
| Permissible relative moisture | : 80% |
| Permissible Ambient Temperature | : 5-40°C |
| IP Class | : 10 |
